Camera |
Model No. |
EY-D4WP03-WA |
System |
DSP SSC335, Flash 8MB, DDR2 64MB |
Image Sensor |
SC3335 1/2.8 4.0MP 25fps |
Frame Rate |
2304*1296@25, 1080p@25 |
Signal System |
PAL / NTSC |
Image Output |
Main Steam: 2304*1296, 1920*1080Sub Steam: D1,640*360,352*288 |
Audio Processing |
G.711u, G.711a Coding and decoding standard, support noise suppression, and support audio and video synchronization |
DNR |
3D DNR |
WDR |
D-WDR |
Video Compression |
H.265/H.264,support dual stream, Support transparent (default), bright and standard scene mode, select to adjust image style preferences; |
Network |
LAN |
RJ45 10M/100M adaptive ethernet |
POE function |
Optional |
Dual stream |
Support |
Access protocol |
ONVIF |
Support protocol |
HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,PPTP etc. |
Client |
Support mobile phone IOS, Android and PC |
Intelligent functions |
Support AI HUMAN DETECT |
Other Function |
Support Web configuration, support OSD, support real-time video transmission, support motion detection alarm linkage, support center reminder and screen pop-up linkage after motion detection alarm; support system applications such as remote monitoring software (UYC) |
General |
Light |
2pcs IR lights |
LAN |
RJ45 10M/100M adaptive Ethernet with 8KV antistatic |
Operating Condition |
-40 °C - +85 °C , Humidity 90% or less (non-condensing) |
Lightning protection |
The power supply and network are fully protected against lightning, the front-end power input is protected against lightning, static electricity, and reverse connection, and supports 18V shutdown voltage protection |
Power Supply |
DC12V / 802.11af 48V POE, +-25% support anti-reverse connection, overvoltage, overcurrent protection, input short circuit protection |
Power Consumption |
<1.5W Max daytime, <5.4W Max at night |
Weight |
0.4 kg |

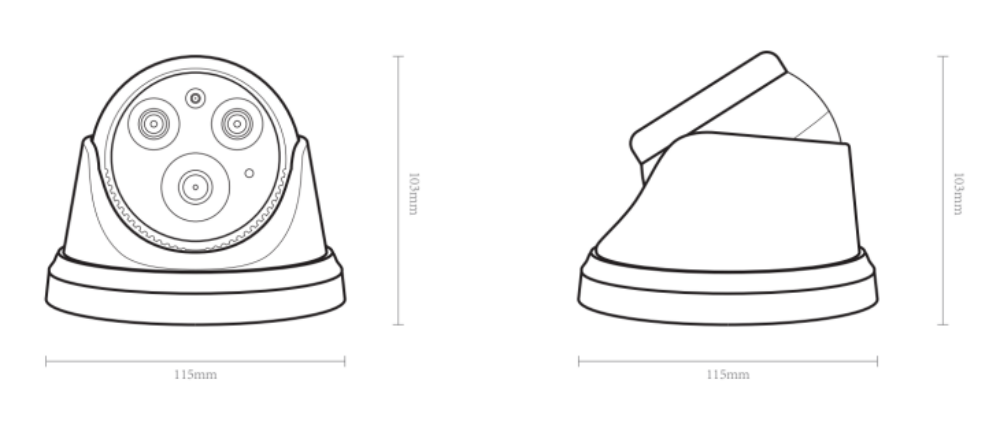

Product Dimension |
115*115*103mm |
